Networking ethernet cable
· Pass FLUKE Test High Performance Computer Networking Cable
· Suitable for Fast, Gigabit, and 10-Gigabit Ethernet
· Digital Communication Applications of up to 550MHz Bandwidth
· Exceeds TIA/EIA 568-C.2 , ISO/IEC 11801 Standards
· Tangle Free Reelex and Easy Pull Box Packing
· ETL Listed, CMP / FT6 Rated PVC Jacket Use Indoors
|
|
Name
|
|||
|
Cat6 4Pair UTP
|
Cat6 4Pair FTP
|
Cat6 4Pair SFTP
|
||
|

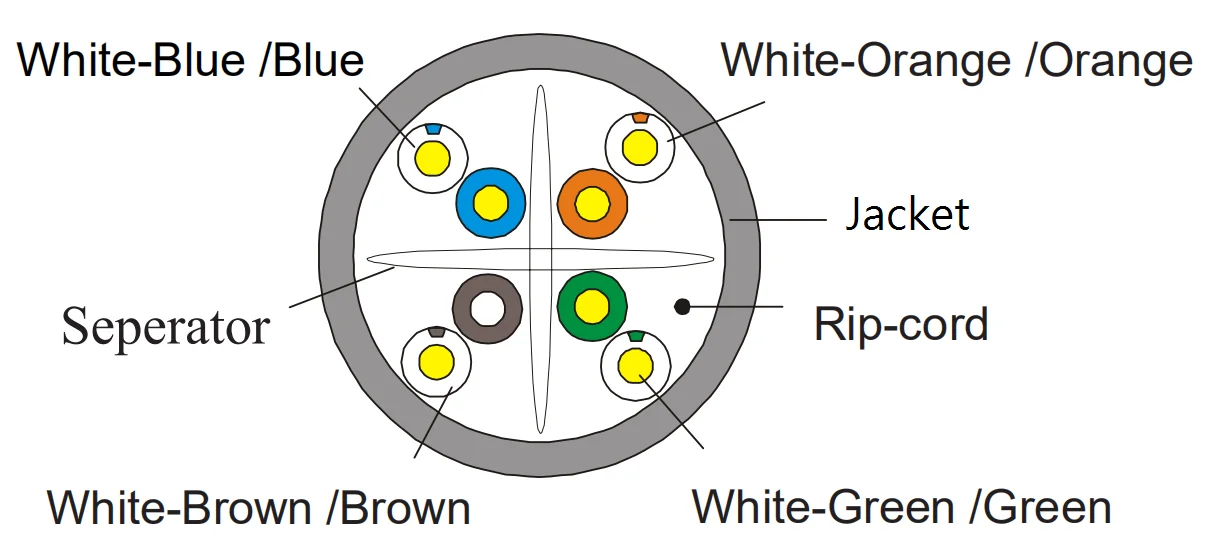

Structure
|
Material
|
Diameter(mm)
|
||
|
Conductor
|
CCA/BC
|
0.57
|
||
|
Insulation
|
PE
|
1.04
|
||
|
1st Shield
|
AL Foil
|
/
|
100%
|
100%
|
|
2nd Shield
|
AL/CCA Braiding
|
/
|
/
|
40-90%
|
|
Jacket
|
PVC/PE
|
5.70
|
6.20
|
6.70
|
|
Temperature Rating
|
-20℃ to 60℃
|
||||
|
Dielectric Breakdown
|
2500V
|
||||
|
DC Resistance/Unbalance
|
28.6Ω/1000’Max/5% Max
|
||||
|
Characteristics Impedance
|
100Ω
|
||||
|
Other Electric Performance
|
Frequency
（MHz）
|
Attenuation
（dB/100m）
|
Return Loss
（dB/100m）
|
Pair to Pair
|
|
|
Next
（dB/100m）
|
ELFEXT
（dB/100m）
|
||||
|
1
|
2
|
20
|
75.3
|
63.8
|
|
|
4
|
3.8
|
23
|
66.3
|
51.7
|
|
|
8
|
5.3
|
24.5
|
61.8
|
45.7
|
|
|
10
|
6
|
25
|
60.3
|
42.8
|
|
|
16
|
7.6
|
25
|
57.2
|
39.7
|
|
|
20
|
8.5
|
25
|
55.8
|
37.7
|
|
|
25
|
9.5
|
24.3
|
54.3
|
35.8
|
|
|
31.25
|
10.7
|
23.6
|
52.9
|
33.9
|
|
|
62.5
|
15.4
|
21.5
|
48.4
|
30
|
|
|
100
|
19.8
|
20.1
|
45.3
|
29
|
|
|
155
|
25.2
|
18.8
|
42.4
|
28.1
|
|
|
200
|
29
|
18
|
40.8
|
27.8
|
|
|
250
|
32.9
|
17.3
|
39.3
|
23.8
|
|
|
400
|
40.8
|
16.9
|
39.3
|
18.8
|
|
