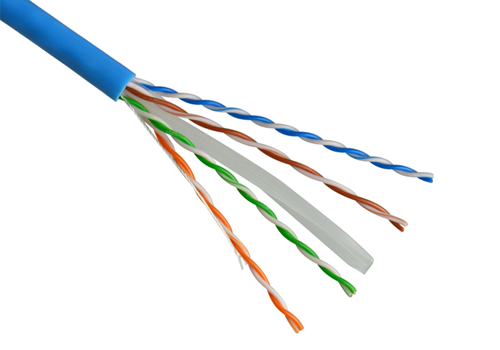

Copper aluminum conductor, covered with polyethylene;
The conductors are twisted in pairs, 04 pairs 24 AWG, 0.51 mm;
External cover not flame retardant, with UV protection;
Flammability: Eca CPR;
Metric sequential marking decreasing, with recording of day / month / year, providing tracking of the lot.
Installation Environment:
Internal external.
|
PRODUCT & SPEC.
|
CAT5E UTP/FTP/STP/SFTP
|
|
|
CONDUCTOR
|
Material
|
BC/OFC/CCA/CCU/CCS
|
|
OD
|
4X2X0.5mm±0.005mm, 24AWG
|
|
|
Number
|
4Pairs
|
|
|
INSULATION
|
Material
|
HDPE
|
|
OD
|
Φ0.91±0.05mm
|
|
|
JACKET
|
Material
|
PVC/LSZH
|
|
Color
|
As client’s request
|
|
|
OD
|
Φ5.1mm±0.1MM
|
|
|
PERFORMANCE
|
DC Resistance(Max.)
|
9.5Ω/100m
|
|
DC Resistance Imbalance
|
2.5%
|
|
|
Working Capacitance(Max.)
|
5.4nF/100m
|
|
|
Insulation Resistance
|
10000 MΩ.km
|
|
|
NVP
|
69%
|
|
|
Operating temperature(℃)
|
-20℃~+70℃
|
|
